Use For : Material Loading
Specifications
Conveyor Stucture: M.S. Powder Coated.
Conveyor Size Approx:
Top Conveyor: Length-4300mm., Height-800mm., Width-400mm.
Adjustable Telescopic Bottom Conveyor: Length-2700mm., Height-670mm.,Width-400mm.
Conveyor Full Length with Telescopic Approx: 7000mm.
Conveyor Belt Width: 340mm.
Belt Type: PVC Endless.
2 Step Extension:

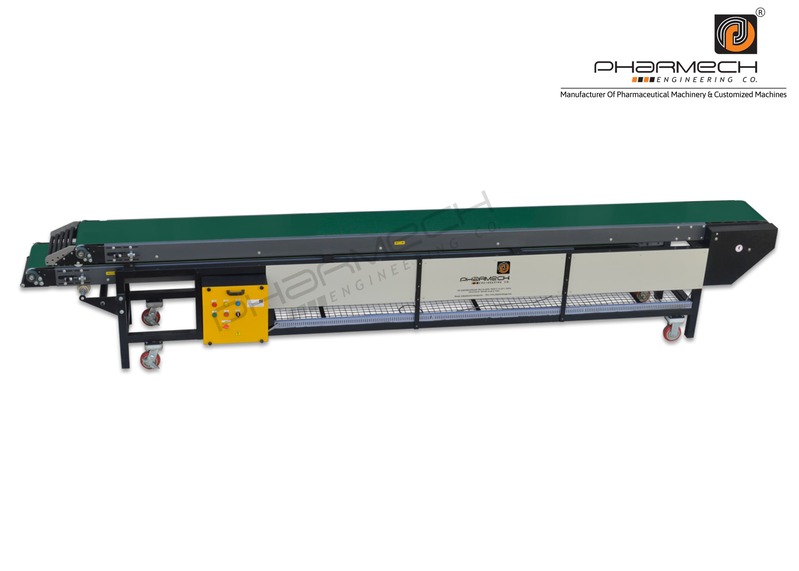

1-Fully Closed Condition.

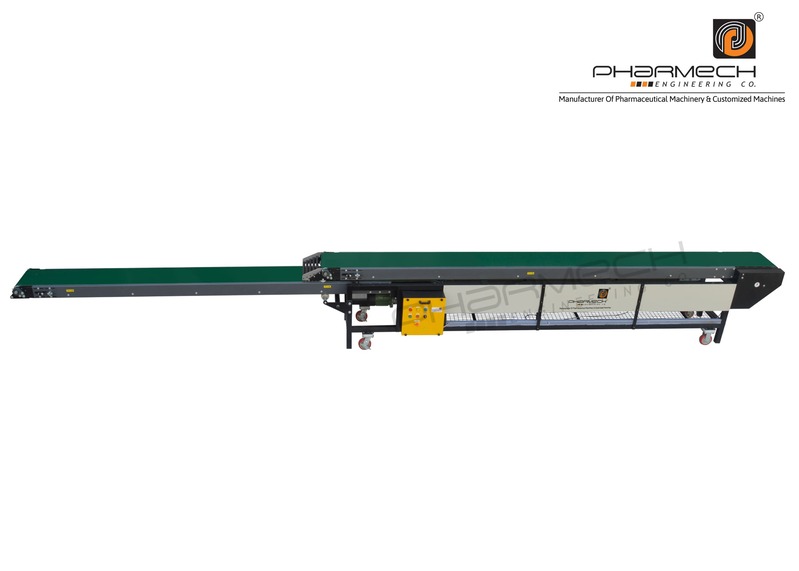

2-Fully Opened Condition.
Conveyor Running Load Capacity Approx: 5kg to 25kg.

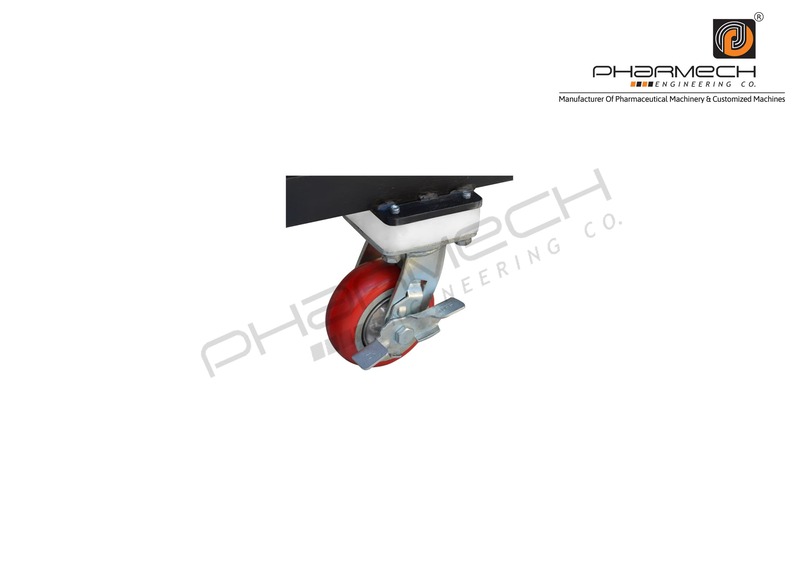

Conveyor with Caster Wheel Fitted for Easy Movement.

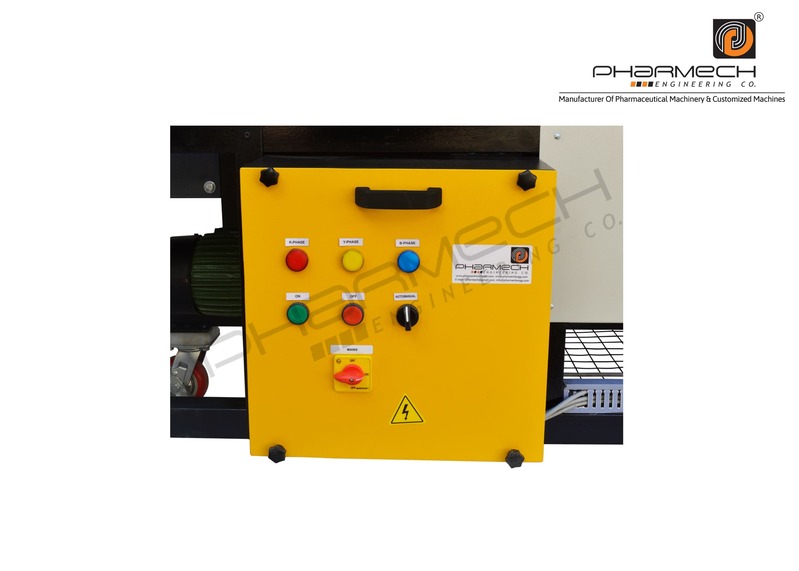

Power Supply: 3 Phase, 415V.
