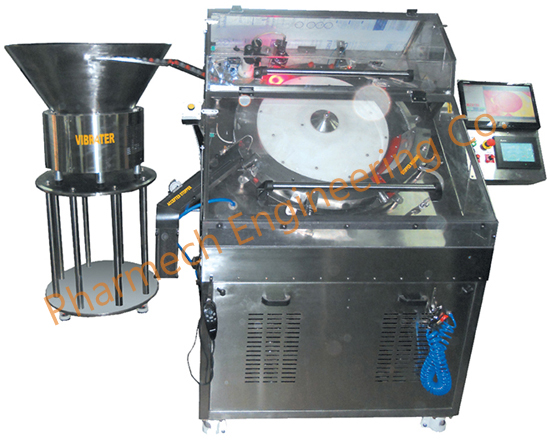

Rubber Stopper Washing And Inspection Model : RSIW – 200
This is fully automatic machine which are very easy to operate and gives excellent output.
Rubber stopper counting & bunching systems.
Rubber washing nozel & drying nozel (make – u.s.a)
Technical Specification :
| Model No | RSIW – 200 |
| Direction | left to right |
| Dimensions | 1600mm(l) x 2800mm (w) x 1900mm(h) |
| Net weight | 600kgs. (approx.) |
| Construction | complete s.s. – 304 & 316. |
| Power Supply | 415 v, 3 phase, 50hz. |
| Water pump | 2 hp – 01 (glanforce) |
| Air blower | 1 hp (rubber drying system) |
| Rubber stoper size | 32mm x 15mm. |
| Air presser requirment | 10 kgs |
| Vibrator unit | 01 – 36 inch |
| Online camera inspection | panasonic. (make – japan) |
| Machine drive gear motor | bonfiglioli – italy |
| Machine drive gear motor | bonfiglioli – italy |
| Machine cabinet | polycarbonet material |
| Opreting system | p.l.c. Opreted (make – delta) |
| Camera visual system | 01 nos computer |
| Rubber inspection speed | 200 nos./ minute. |
